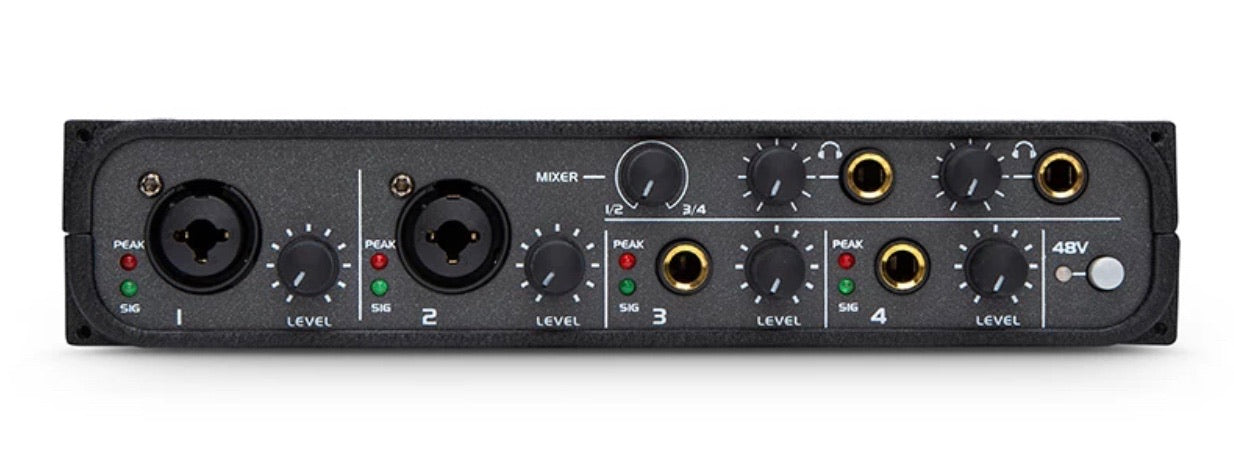

Professional Quality USB Interface
2 Mic Preamps
4 Channel Virtual Input and Output
4 Channel Analog Input and Output
MIC input
Frequency response: 20 Hz – 20K Hz, + -0.2dB
Gain range (A weighting): 50dB
THD + N: ≤0.004 @ 1K,
Signal to noise ratio: 94dB
Dynamic range (A weighting): 95dB
Maximum gain: 64dB
Phantom power: DC 48v
Input impedance (balanced XLR): 2K Ω
Maximum input level: -10 dB
LINE input
Frequency response: 20 Hz – 20K Hz, + -0.2dB
Gain range (A weighting): 50dB
THD + N: ≤0.004 @ 1K,
Signal to noise ratio: 94dB
Dynamic range (A weighting): 95dB
Maximum gain: 64dB
Input impedance (balanced TRS): 10K Ω
Maximum input level: 0dB
INSTRUMENT:
Frequency response: 20 Hz – 20K Hz, + -0.2dB
Gain range (A weighting): 82dB
THD + N: ≤0.004 @ 1K,
Signal to noise ratio: 94dB
Dynamic range (A weighting): 95dB
Maximum gain: 12dB
Input impedance (balanced TRS): 10K Ω
Maximum input level: 14dB

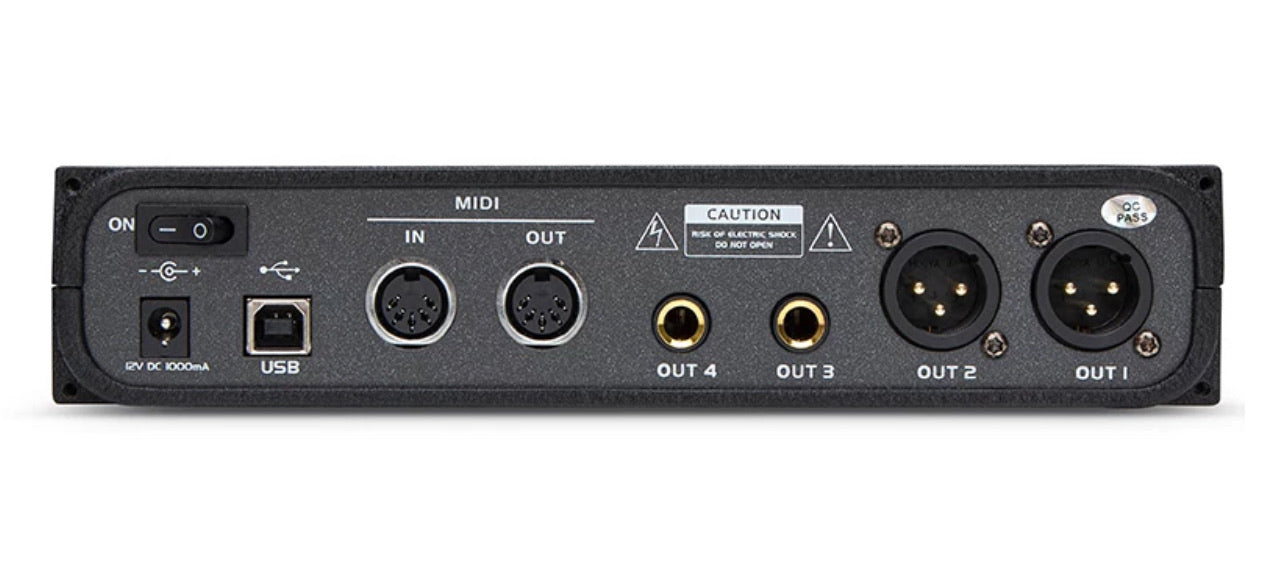

OUTPUT:
Output impedance (balanced XLR, TRS): 50 Ω
Maximum output level (balanced XLR, TRS): +6 dB
Local noise (balanced XLR, TRS): -88dB
